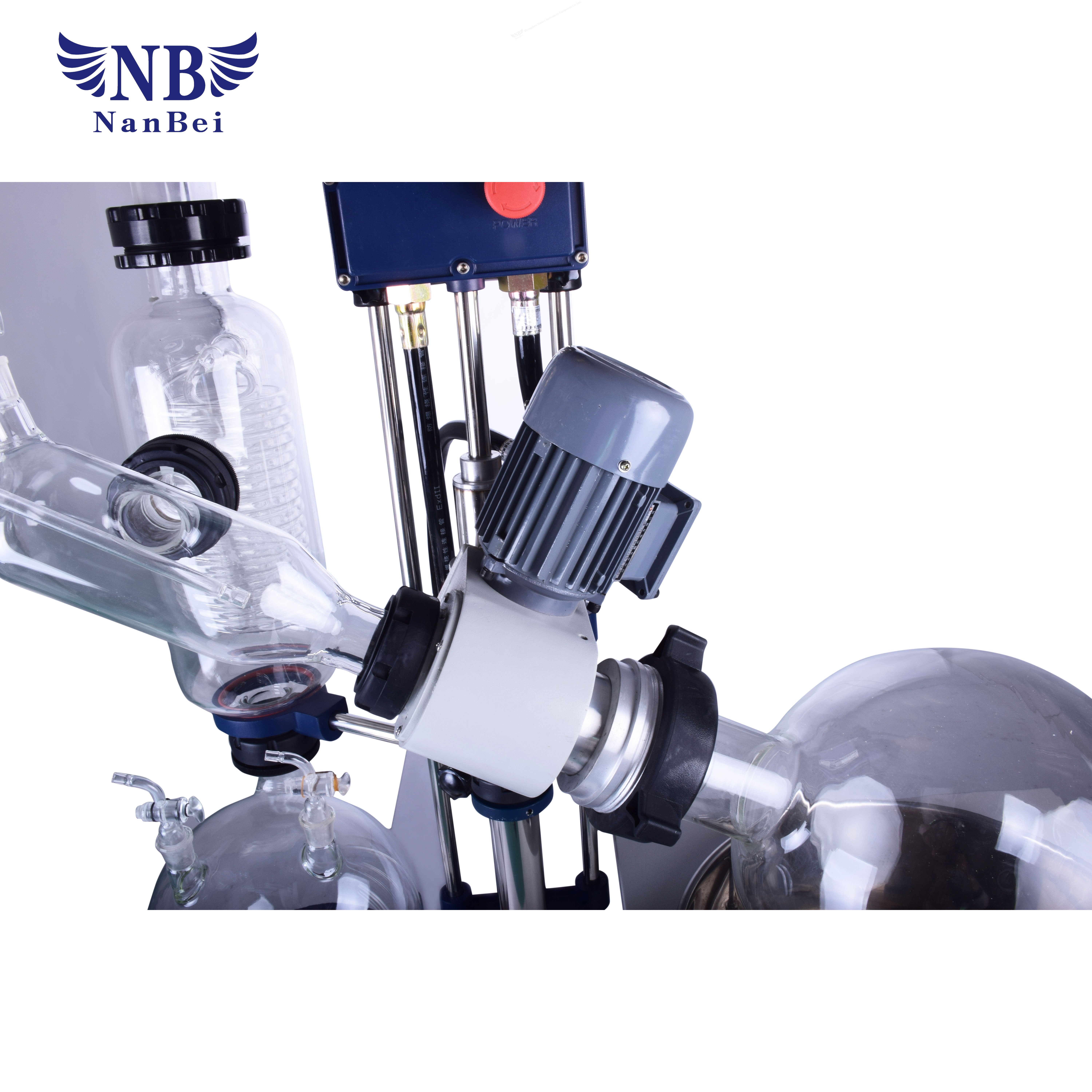

Lab 30L Rotary Evaporator for Evaporation and Distillation

Introduction of 30L rotary evaporator: NANBEI Rotary Evaporator widely used in laboratories. Suitable for reflux operation, rapid evaporation of a large number of solvents, concentration of trace components, and reaction processes that requ

    Introduction of 30L rotary evaporator:
    NANBEI Rotary Evaporator widely used in laboratories. Suitable for reflux operation, rapid evaporation of a large number of solvents, concentration of trace components,
    and reaction processes that require stirring. The rotary evaporator system can be sealed and decompressed to 400 to 600 mm Hg; the solvent in the distillation flask is
    heated by a heating bath, and the heating temperature can be close to the boiling point of the solvent; at the same time, it can be rotated at a speed of 50 to 160 rpm
    The solvent is formed into a thin film, and the evaporation area is increased. In addition, under the action of a high-efficiency cooler, the hot vapor can be quickly
    liquefied, which accelerates the evaporation rate.



    Working principle of 30L rotary evaporator:
    Through electronic control, the flask is rotated at a constant speed at the most suitable speed to increase the evaporation area. The evaporation flask was brought to a
    negative pressure state by a vacuum pump. The evaporation flask is heated at constant temperature in a water bath while rotating, and the solution in the bottle is heated
    and diffused and evaporated in the rotation flask under negative pressure. The rotary evaporator system can be sealed and decompressed to 400 to 600 mm Hg; the solvent
    in the distillation flask is heated by a heating bath, and the heating temperature can be close to the boiling point of the solvent; at the same time, it can be rotated at a speed
    of 50 to 160 rpm The solvent is formed into a thin film, and the evaporation area is increased. In addition, under the action of a high-efficiency cooler, the hot vapor can be
    quickly liquefied, which accelerates the evaporation rate.



    Parameters of 30L rotary evaporator:
    Power supply voltage  220V /   50HZ (customizable 220V / 60HZ, 110V / 60HZ)
    Motor power  30W
    Lifting power  15W   1/15
    Heating power  1KW
    Rotation speed  0-120rpm / min
    Temperature control range  room   temperature -99 ℃   (optional oil bath, recommended below 180 degrees)
    Temperature control accuracy  ± 1 ℃
    Vacuum degree  0.098Mpa
    Evaporation capacity  20ml /   min (bath temperature 70 ℃,   raw ethanol)
    Host lifting stroke  0-160   (mm)
    Temperature range of glass  -80-250 ℃
    Rotary bottle capacity  1000ml   Φ 131mm / 24 # standard mouth
    Collection bottle capacity  500ml   Φ 105mm / 24 # standard mouth
    Condenser size  Φ 85 ×   460H (mm) (optional cold trap condenser)
    Vacuum suction port size  29 #
    Feeding valve  19 #   standard port
    Pot size and capacity  Φ 220   × 120H (mm) about 4.5L (optional transparent cover)
    Pot shell size  250L ×   370W × 160H (mm)
    Dimensions  650L ×   380W × 1030H (mm) (after the host is raised)
    Packing size  590L ×   470 × 465H (mm) carton 0.13m 3
    Package weight  21KG
